Pin-Loaded Selectorized Gym Machines

In modern commercial fitness facility engineering, Pin-Loaded Selectorized Gym Machines serve as the indispensable backbone of member retention, operational safety, and floor throughput. Unlike plate-loaded units that demand manual loading of weight disks or free-weight zones requiring constant staff oversight, selectorized pin-loaded machines allow users of all strength levels to adjust resistance instantaneously using a magnetic tethered pin inserted into a solid steel weight stack.

For commercial operators managing high-traffic facilities—such as 24-hour health clubs, hotel fitness amenities, corporate wellness centers, and athletic performance facilities—the choice of pin-loaded selectorized gym equipment directly influences annual maintenance expenditures, insurance risk profile, and overall facility floor profitability. Designed in California by Skelcore LLC (part of Evolution Group USA) and headquartered in Miami, Florida, our strength equipment portfolio reflects over five decades of engineering heritage, led by industry pioneers such as Roy Simonson.

1. Biomechanical Engineering & Mechanical Physics of Selectorized Systems

To deliver measurable hypertrophy and strength adaptation without compromising joint integrity, commercial selectorized machines must match human physiological strength curves. As a muscle moves through its full range of motion (ROM), its mechanical advantage alters due to changing joint angles and length-tension relationships. Skelcore’s engineering process integrates customized computer-machined CAM profiles that systematically adjust resistance torque throughout concentric and eccentric contraction phases.

Key mechanical considerations analyzed by commercial procurement directors include:

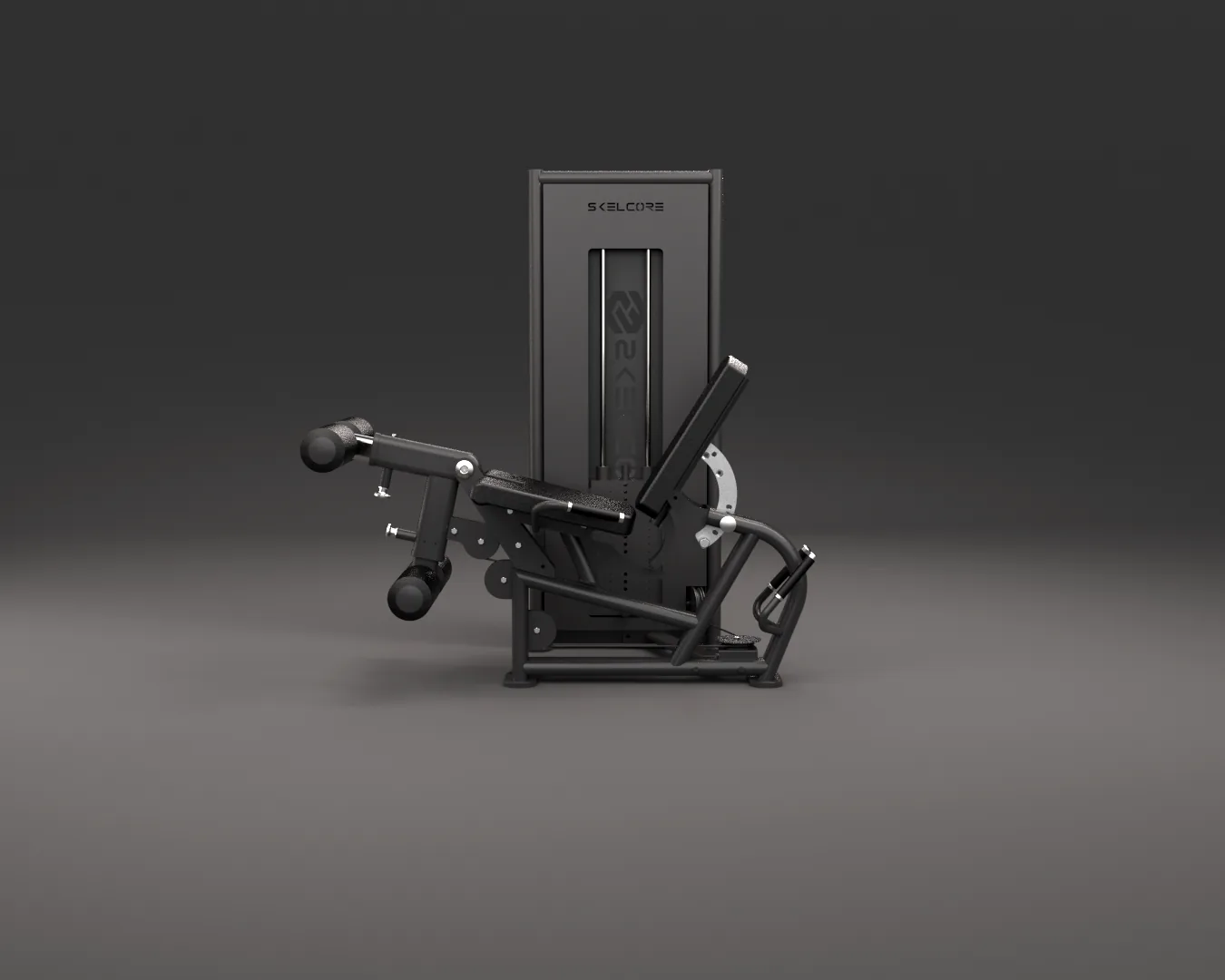

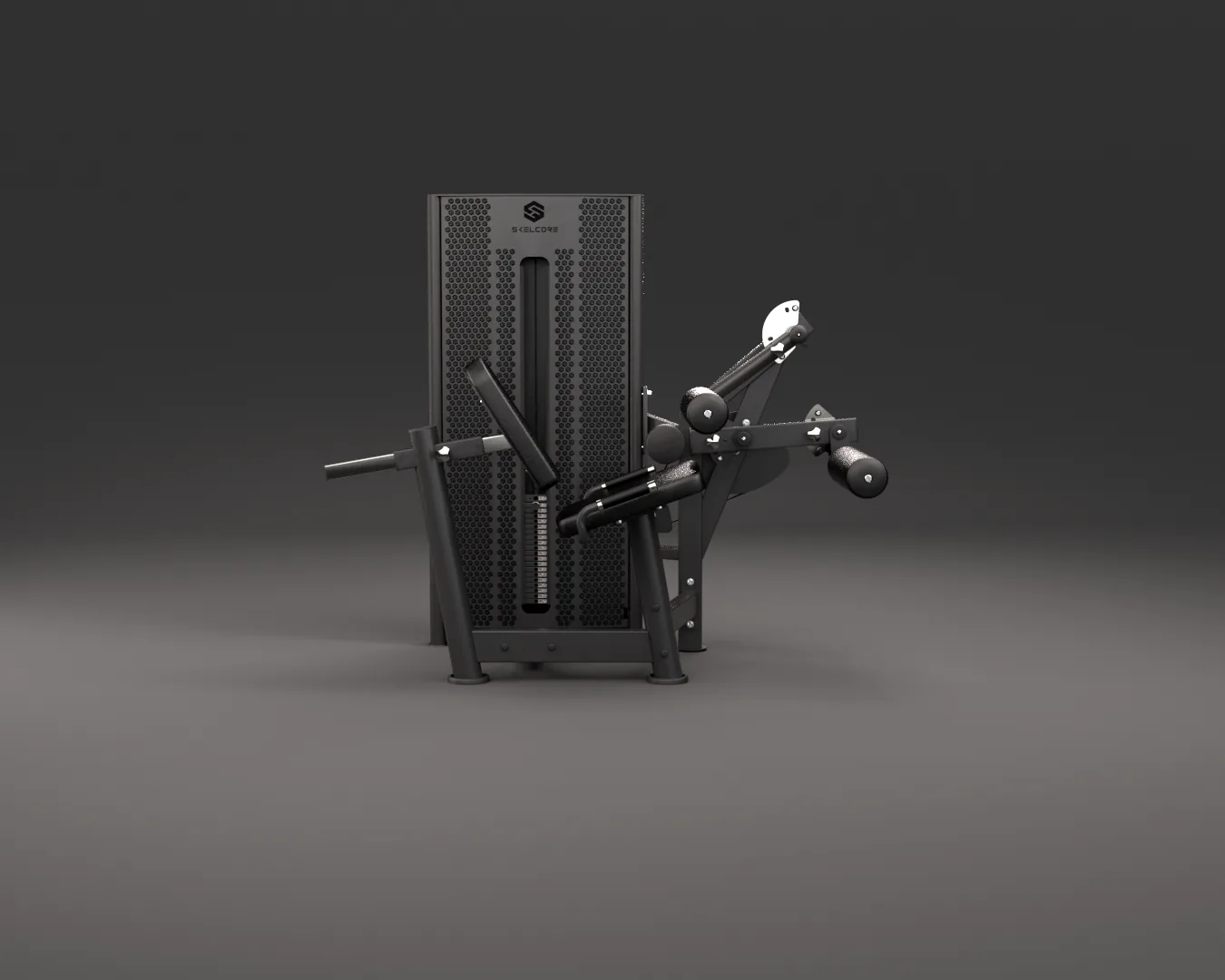

• Converging and Diverging Axes of Motion: Traditional single-pivot selectorized chest press or lat pulldown machines force human joints along unnatural straight paths, placing shearing stress on the glenohumeral joint or elbow complexes. Skelcore Apex and Trinity pin-loaded machines utilize dual-axis converging press arms and diverging pull linkages that mirror the body’s natural anatomical movement, maximizing target muscle recruitment.
• Mechanical Advantage & Cable Friction Ratios: Selectorized units utilize precision pulley arrangements yielding distinct mechanical feel. A 1:1 drive ratio provides direct feedback ideal for compound strength development (e.g., selectorized leg press or seated row), while 2:1 or 4:1 mechanical advantage configurations (common in cable crossover junctions and dual-adjustable functional trainers) yield extended cable travel, smooth movement velocity, and finer weight increment adjustments.
• Friction Mitigation in Cable Drive Assemblies: Systemic friction is the primary destroyer of movement feel on commercial selectorized floors. Skelcore utilizes 7x19 strand aircraft-grade steel cables enclosed in low-friction nylon jackets, rated to 4,200 lbs tensile strength. Combined with CNC-machined fiberglass-reinforced nylon pulleys housing sealed stainless steel ball bearings, cable drag is reduced to under 1.8% across the entire movement path.
• Guide Rod Alignment & Weight Stack Dampening: To eliminate stick-slip friction and clanging stack noise on peak-hour gym floors, weight plates are cast from solid cold-rolled steel, fitted with self-lubricating linear nylon bushings, and guided by solid stainless steel rods polished to a micro-inch mirror finish. Rubber impact bumpers positioned at the base of every weight stack absorb kinetic energy during eccentric release.

2. Global Procurement Trends: The Next-Gen Selectorized Floor (2026–2030)

As commercial fitness operators transition toward hyper-efficient business models, the specification of pin-loaded selectorized strength equipment is undergoing significant evolutionary shifts. Artificial intelligence intent mining of global procurement queries reveals that gym owners and institutional project managers prioritize four critical macro-trends when issuing RFPs (Request For Proposals):

A. Footprint Efficiency & Multi-Station Jungle Consolidation

Urban real estate costs demand higher revenue generation per square meter. Commercial facility designs increasingly move away from single-station isolation machines toward multi-station cable jungle configurations (such as Skelcore’s 8-Station Jungle) and dual-function selectorized units (e.g., Lat Pulldown / Seated Row combos and Biceps / Triceps dual units). Multi-functional pin-loaded equipment maximizes simultaneous user capacity without overwhelming floor density.

B. Brand Integration & Visual Identity Customization

Modern franchise networks (such as UFC Gym, Gold's Gym, Crunch Fitness, and EOS Fitness) rely heavily on distinct interior design aesthetics. Off-the-shelf grey or silver gym equipment no longer satisfies national brand standards. Skelcore offers complete factory custom OEM branding, allowing operators to specify custom electrostatic powder-coat frame finishes (matt black, high-gloss white, textured charcoal, custom brand colors), premium contrast-stitched upholstery, laser-cut custom logo shrouds, and custom weight stack badges.

C. Smart Stack Telemetry & Connected Member Tracking

The integration of RFID and Bluetooth telemetry sensors into pin-loaded weight stack guide rods allows seamless connectivity with gym member apps. Automated repetition counting, velocity tracking, and electronic load verification enable personalized training guidance while providing gym managers with real-time equipment usage heatmaps to guide preventive maintenance schedules.

D. Inclusive Ergonomics & Accessible Design Standards

With gym member demographics broadening to include active aging populations, physical therapy clients, and adaptive athletes, selectorized machines must feature low start-resistance stack options, gas-assisted seat height adjustments, yellow tactile touchpoints on pop-pins, and easy-access step-through frames that eliminate tripping hazards.

When planning a commercial gym fit-out, procurement teams must balance the capital expenditure (CapEx) and operational profile of Pin-Loaded Selectorized Gym Machines against Plate-Loaded Strength Equipment. Both modalities serve specific training objectives, but their operational characteristics differ drastically across commercial floor metrics:

3. Structural Integrity: Heavy-Duty Frame Fabrication & Testing Standards

Every Skelcore selectorized machine undergoes rigorous computer-aided finite element analysis (FEA) and dynamic stress testing before entering production. Frame structures utilize 11-gauge (3mm wall thickness) Q235/Q355 structural steel tubing, robotically welded to withstand continuous dynamic impact loading exceeding 500,000 continuous cycle stress tests.

Frames receive a multi-stage surface preparation process consisting of automated shot-blasting to eliminate surface oxides, an anti-corrosion zinc phosphate base coat, and an electrostatically applied thermo-cured powder coat finish. This industrial coating resists scratching, sweat corrosion, chip damage, and harsh chemical cleaners utilized during facility sanitization routines.
